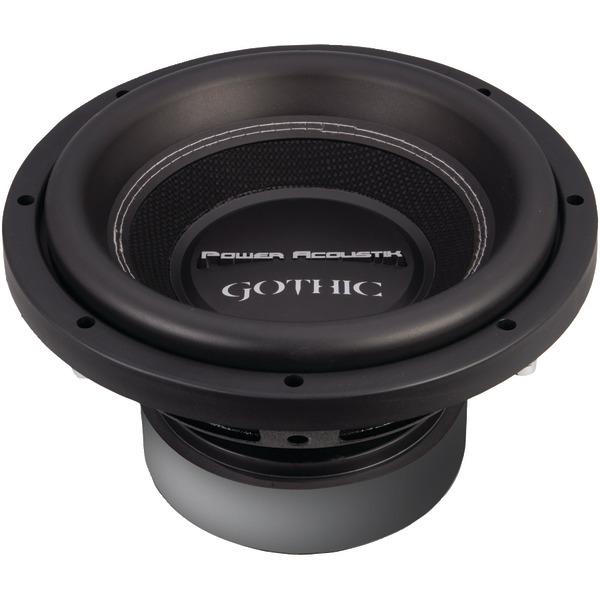

Power Acoustik GW3-10 Gothic Series 2ohm Dual Voice-Coil Subwoofer (10 2200 Watts) 2200W max
1000W RMS
25 dual 2ohm voice-coil configuration
Overcompensating motor structure for increased magnetic strength
10mm T-yoke & top plate improve low-frequency dynamics
Vented T-yoke & frame reduce voice-coil heat buildup
2.5 Dual 2ohm 4-layer voice coils with nickel-plated 8-gauge spring-loaded terminals
High-temperature-tolerant adhesives resist thermal failure
Composite spruce pulp cone with twisted & woven flax fiber
Extended-excursion NBR surround with UV protection
Stitched & glued surroundcone joints for strongest bonding
Poly-cotton suspension dampens violent accelerations
Stitched voice lead leads prevent potential damage
Efficiency: 81.3 @ 1W1m
Motor volume: 204oz
Mounting depth: 6
Optimum sealed enclosure: 1 cu ft
Optimum ported enclosure: 1.5 cu ft
Includes 1-piece gaskettrim ring with concealed mounting holes
POWER ACOUSTIK(R)PRODUCT WARRANTY : ONE YEAR
