Pyle Pro PDWM2115 VHF Wireless Microphone Receiver System with Independent Volume Control VHF narrow band receiver
Dual frequency design (Channel AB)
High signalnoise ratio performance
Broad frequency response range & low distortion
Independent adjustable volume control
Volume control indicators & status signals
Audio outputs
Dual independent channel antennas
RF signal & AF signal LED indicators
Radio frequency & audio frequency

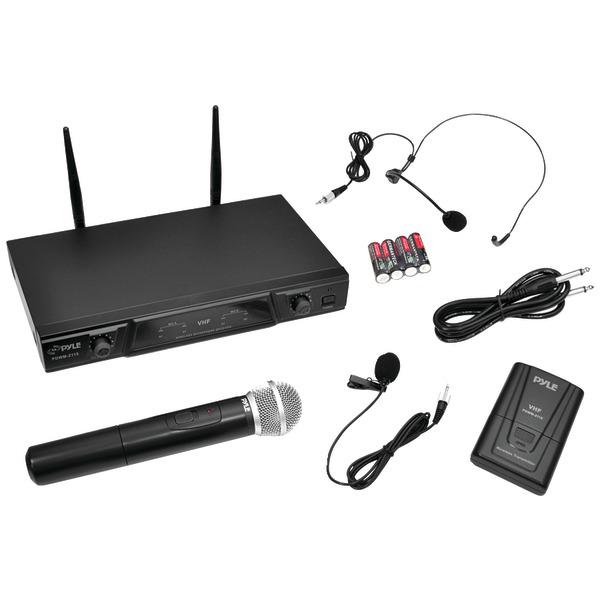

Includes wireless belt pack transmitter handheld & lavalier microphones
Receiver:
Channel freq: 170MHz-260MHz
Freq stability: +-.002%
Sensitivity: -95dBm (SN: 12dB)
Signal-to-noise ratio: >70dB
RF image rejection: -75dB
Neighboring channelinterference: >70dB
Audio dynamic range: 95dB
Freq resp: 50Hz-15kHz +-3dB
THD: 164ft
Power: AC 120V60Hz
Dim: 12.7H x 8.5W x 1.9D
Transmitter:
Carrier freq: 170MHz-260MHz
Freq stability: +-.002%
RF power output: >13dBm
Harmonic at higher degree: 30kHz
FM modulation
Power current:PYLE PRO(R)PRODUCT WARRANTY : ONE YEAR
